K200-LP™ Smart Storage Acceleration Card
MPPA® DPU-based Acceleration Card for Data Centers

Data centers are looking for solutions that enable high performance, low power, cost effectiveness and openness to scale and match demand on data availability. The K200-LP™ acceleration card is Kalray’s solution to address these exacting demands for their data center customers by offloading the most demanding data center workload.

Based on Kalray’s MPPA® processor, K200-LP™ is the latest member of Kalray’s family of data-centric acceleration cards offering an unprecedented level of performance and programmability.

K200-LP™ has been fully optimized to address the growing market of NVMe and NVMe-oF-based storage solutions, from Cloud to Edge. It is a game changer solution in terms of performance per Watt and per dollar.

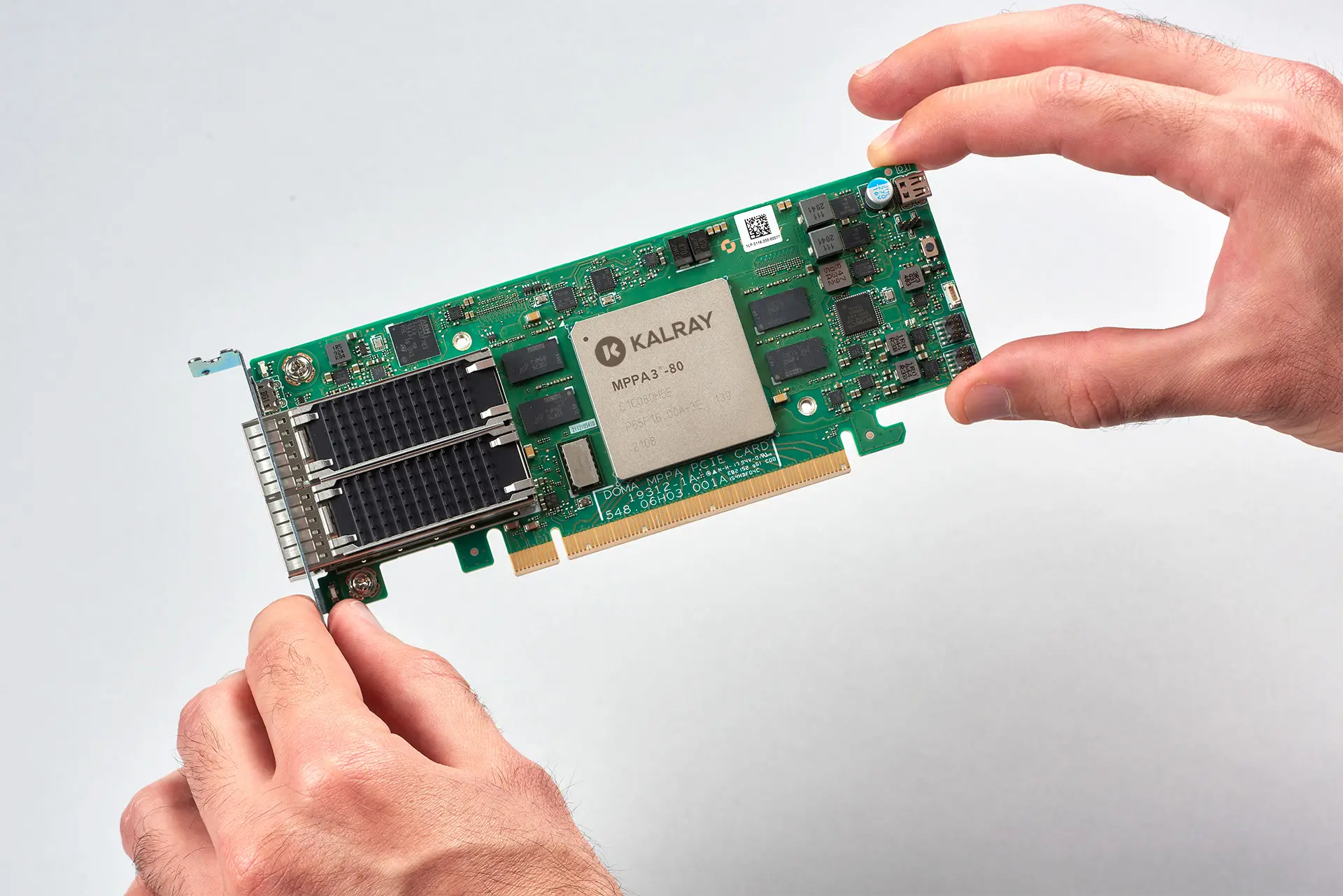

  • Kalray's K200-LP low profile card
  • K200-LP Smart Storage Adapters into Kalray Flashbox
  • K20-LP Card_2000x1500

K200-LP™ Cards in the Kalray Flashbox™

Flashbox™ is the first disaggregated NVMe All-Flash-Array designed from the outset to leverage the full potential of NVMe flash devices at massive scale, while ensuring the lowest storage TCO.

Technical Corner

    • Hardware Specifications

      Features Technical specifications
      Ethernet Speed 2x100GbE - 2xQSFP28 (Fiber or Copper)
      Power Consumption 20W - 60W
      Interface PCIe Gen4 1x16 (or 2x8, 4x4, 8x2)
      Memory Default: 2x4GB  DDR4 @3200 MT/s (up to 32GB)
      Processor MPPA®3-80 (Coolidge™) - 80 cores @up  to 1.0 GHz
    • All Storage Services run on the K200-LP™ Smart Storage Acceleration Card

      Kalray DPU is purpose-built for running data services at line rate:

        Data services
      Basic services TCP termination, logical volumes, thin provisioning, snapshots
      Data reduction Compression, de-duplication, zero-detection
      Data Availability RAID, distributed erasure coding
      Data security Encryption at rest, encryption in motion

Hardware and Software Environments

  • MPPA Coolidge Processor

    In the data center world, Kalray’s MPPA® processor is used as an advanced DPU (Data Processing Unit): a new generation of processing accelerator for predominantly data-centric processing tasks.

    Read more
  • Kalray AccessCore Software
    AccessCore® Storage

    AccessCore® Storage is an SPDK based open software environment. It provides standard APIs and a tool chain with MPPA® DPU-optimized software modules such as network (ODP) and storage (SPDK) functions.

    Read more
