K200™ CARD

KALRAY’S DEVELOPMENT PCIE CARD

Kalray’s DPU-based Development PCIe Card

The K200™ boards make up a family of programmable, low-power PCI Express (PCIe) cards, featuring the MPPA®3 DPU Coolidge™ processor. Kalray’s 3rd generation MPPA® DPU manycore processor is designed for the development of applications using the MPPA®’s high-speed interfaces (PCIe, Ethernet, etc).

The K200™ board is part of the Kalray’s MPPA®-DEV4, our development platform, and is also integrated within the NXP BlueBox, a versatile development platform for automotive from NXP.

K200™ is fully supported by AccessCore® SDK and can be used in acceleration or standalone modes

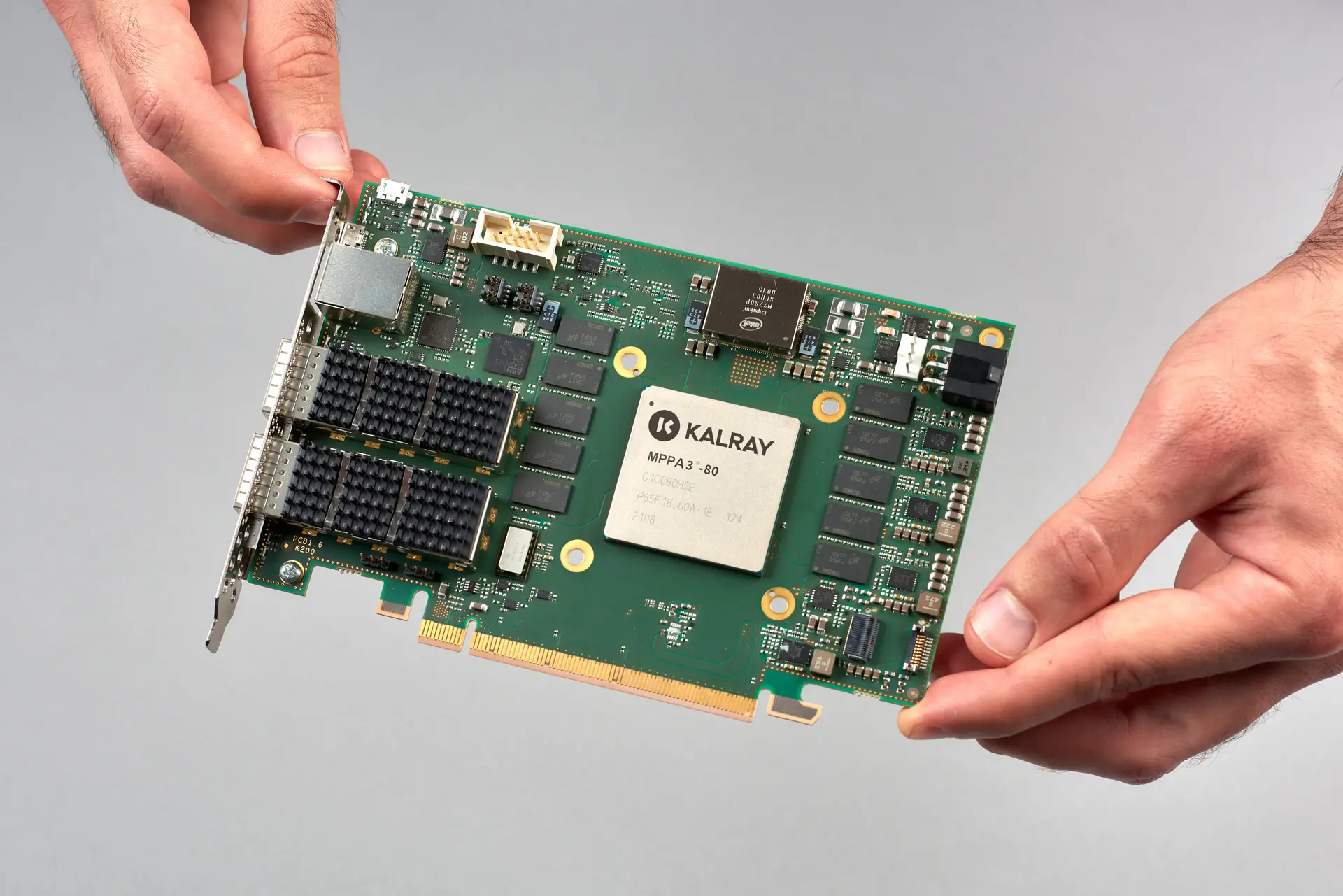

Kalray K200 DPU-based Acceleration Card

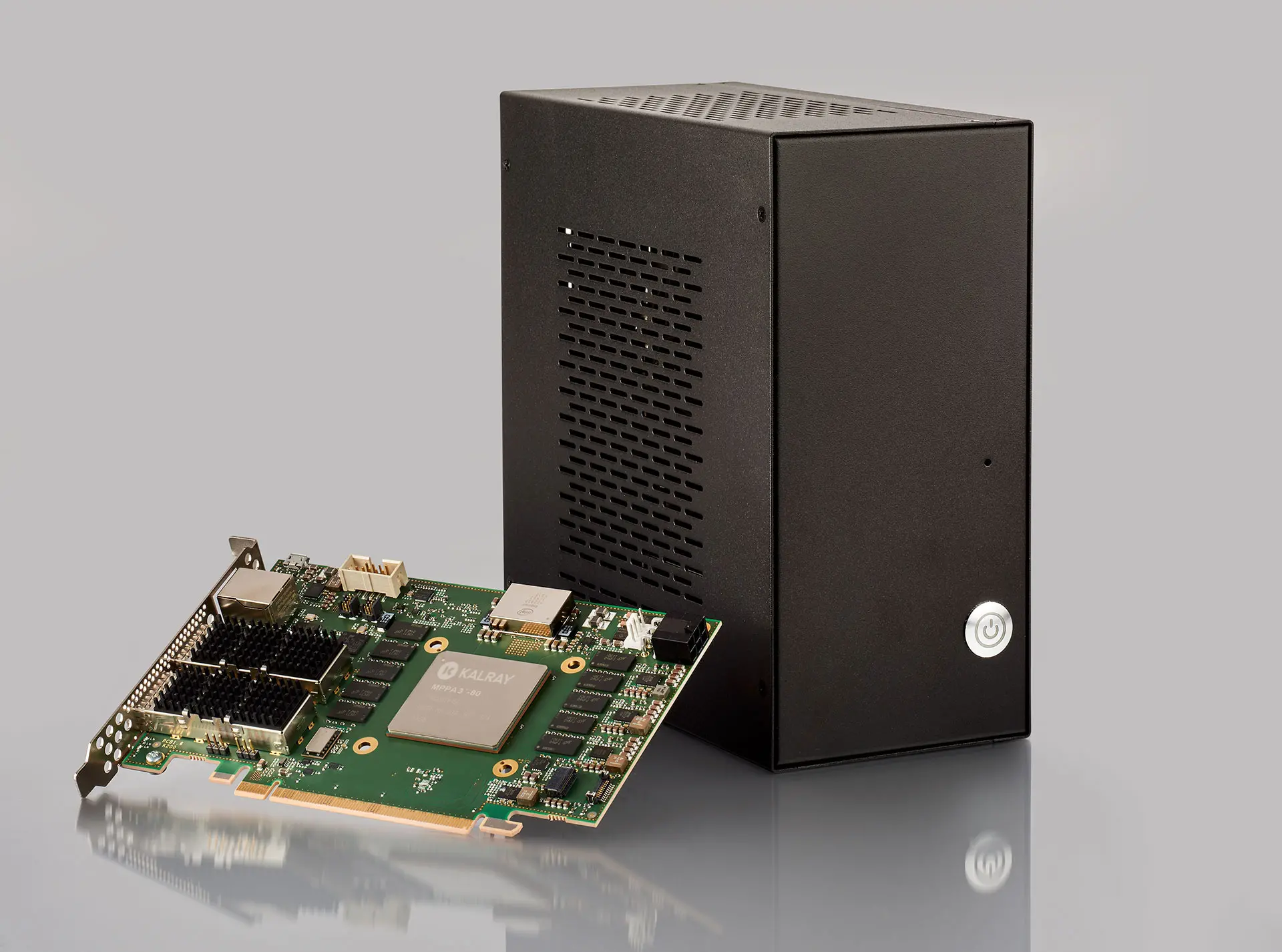

Kalray_MPPA-DEV4_development platform
Kalray K200 DPU-based Acceleration Card

Based on Kalray’s MPPA®3-80 DPU Coolidge™ Processor

  1. The highest core count on the market: 80 VLIW cores tightly associated with 80 Tensor cores on a chip
  2. Low energy consumption: 30W typically
  3. Real-time & low latency
  4. High programmability: Standard C/C++, OpenCL

Get started now!

Want to learn more about the K200™ board?

Technical Corner / K200™ Specifications

FEATURES TECHNICAL SPECIFICATIONS
Main Component 1x MPPA® 3-80 DPU (Coolidge™) - 80 cores @ up to 1GHz
Main Input / Output - X16 PCIe Gen4
-2X 100Gb Ethernet
Memory - 2x DDR4 4GB @ 3200MT/s with ECC
- 1x 16GB eMMC for MPPA® applications code
- 1x 1Gb NOR Flash for MPPA® Bootloader code
Format Half Length, Full Height
Overall Size 167.65 mm x 106.7 mm
Width - 1x PCIe slot
- 2x PCIe slot
- 2.5x PCIe slot
Kalray_MPPA_DPU_processor- Data-Processing-Unit

Our DPU Processors Makes It Possible!

Possibilities are endless with Kalray’s unique manycore technology.
